AH131624 Bajaj Ball Bearing: Rear Wheel Axle Bearing for Bajaj RE

Quick facts

What is AH131624?

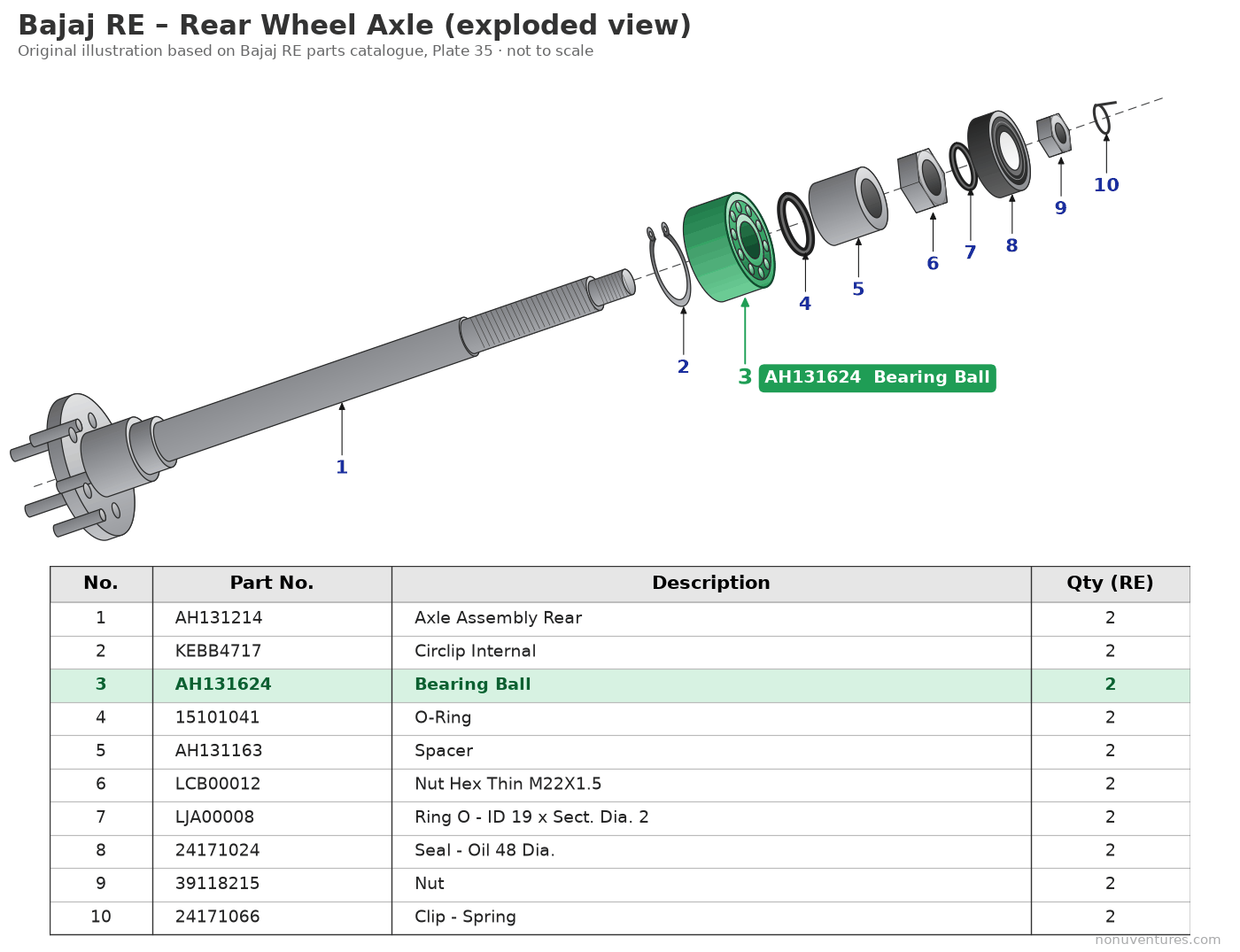

AH131624 is a deep-groove ball bearing that sits on the rear axle of the Bajaj RE. It carries the weight of the vehicle and lets the rear wheel turn smoothly. Bajaj's parts catalogue lists it as "Bearing Ball", item 3 on Plate 35 (Rear Wheel Axle – RE).

The bearing is held in place by an internal circlip and sealed by an O-ring and an oil seal. These parts sit together in the same assembly:

Source: Bajaj RE parts catalogue (MF & BF OBD2B, Rev. 00, May 2025), Plate 35.

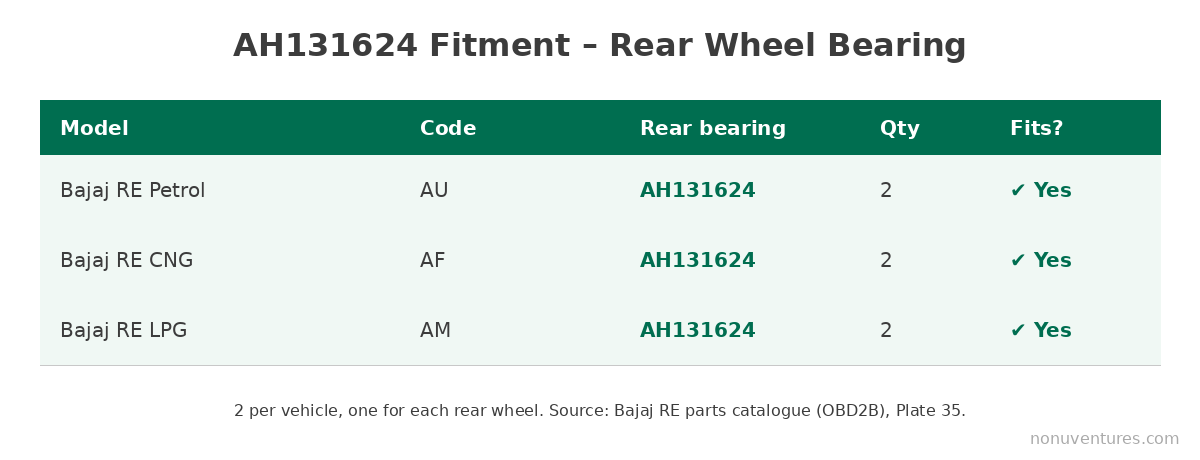

Which Bajaj vehicles use AH131624?

The AH131624 Bajaj bearing fits the Bajaj RE three-wheeler in all three fuel versions. Each vehicle needs two.

Always check the model and fuel type before you order. If you are not sure, send us the vehicle details or a photo of the old part.

Is AH131624 an SKF bearing?

Many buyers search for "AH131624 SKF" because SKF is a well-known bearing brand. AH131624 is Bajaj's own part number. The genuine part comes in Bajaj packaging, and the catalogue does not name a bearing brand or an ISO size.

If you need a bearing-brand equivalent:

• Use the bearing maker's interchange tool (for example, SKF's online cross-reference tool).
• Or send us a clear photo of the markings, or a sample, and we will help you confirm the right part.

Nonu Ventures is not affiliated with SKF or Bajaj. We supply genuine parts. For best results in fleet use, fit the genuine Bajaj AH131624 so the fit, seal and clearance match the original.

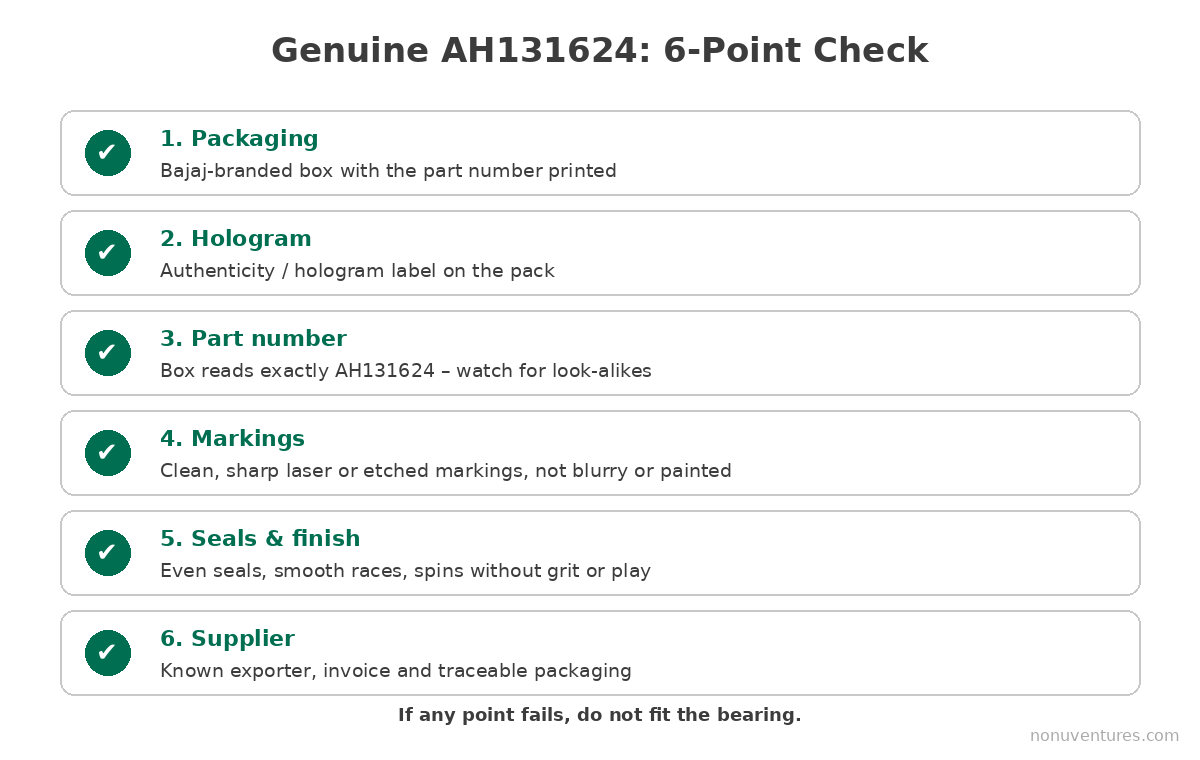

How to identify a genuine AH131624 bearing

Fake bearings are common in the three-wheeler aftermarket. Check these six points before fitting:

1. Packaging: Bajaj-branded box with the part number printed on it.
2. Hologram: an authenticity or hologram label on the pack.
3. Part number: the box reads exactly AH131624. Watch for look-alike numbers.
4. Markings: clean, sharp laser or etched markings. Blurry or painted marks are a warning sign.
5. Seals and finish: seals sit evenly, races are smooth, and the bearing spins without grit or play.
6. Supplier: buy from a known exporter that gives an invoice and traceable packaging.

When should you replace the Bajaj RE rear wheel bearing?

Replace the Bajaj RE rear wheel bearing when you notice any of these signs:

• Humming or grinding from the rear that gets louder with speed
• Play or wobble when you rock the rear wheel by hand
• Heat at the rear hub after a run
• Grease or oil leaking past the 48 mm oil seal (24171024)
• Uneven braking from the rear

Replace both bearings as a pair. Fit a new oil seal (24171024), O-ring (15101041) and circlip (KEBB4717) at the same time, and check the spacer (AH131163). Follow the service schedule in your Bajaj service manual.

Buying AH131624 in bulk: importers, distributors and workshops

The Bajaj RE is widely used as a taxi, mototaxi and delivery vehicle in Latin America, the Caribbean and many other markets. Rear wheel bearings wear out often, so distributors and fleet workshops should keep them in stock.

Tips for planning a bulk order:

• Order by vehicle count: 2 bearings per RE, plus a buffer for a fast-moving part.
• Order the full kit: bearing, oil seal, O-ring, circlip and spacer, so the job is done in one visit.
• Give the model and fuel type: RE petrol, CNG or LPG, so we can check the latest part number.
• Combine parts: add other fast-moving Bajaj RE parts to the same shipment.

Nonu Ventures exports genuine auto spare parts from India, including Bajaj three-wheeler parts, to importers, distributors, dealers and workshops in Europe, South America and the Caribbean.

Frequently asked questions

What is Bajaj part number AH131624?

AH131624 is the genuine Bajaj ball bearing for the rear wheel axle of the Bajaj RE three-wheeler. It is item 3 on Plate 35 of the Bajaj RE parts catalogue. Each vehicle uses two.

Which Bajaj vehicles use AH131624?

The Bajaj RE three-wheeler in petrol (AU), CNG (AF) and LPG (AM) versions.

Is AH131624 an SKF bearing?

AH131624 is Bajaj's own part number, and genuine parts are supplied in Bajaj packaging. To find an equivalent from a bearing brand such as SKF, use the bearing maker's interchange tool or send us a photo or sample of your bearing to confirm.

How many AH131624 bearings does a Bajaj RE need?

Two, one for each rear wheel. Replace them in pairs.

When should I replace the AH131624 bearing?

Replace it if you hear humming or grinding from the rear, feel play in the rear wheel, notice heat at the rear hub, or see grease leaking past the oil seal.

Can I order AH131624 in bulk for export?

Yes. Nonu Ventures supplies genuine Bajaj parts to importers, distributors and workshops. Send your part list and quantities on WhatsApp or by email.
